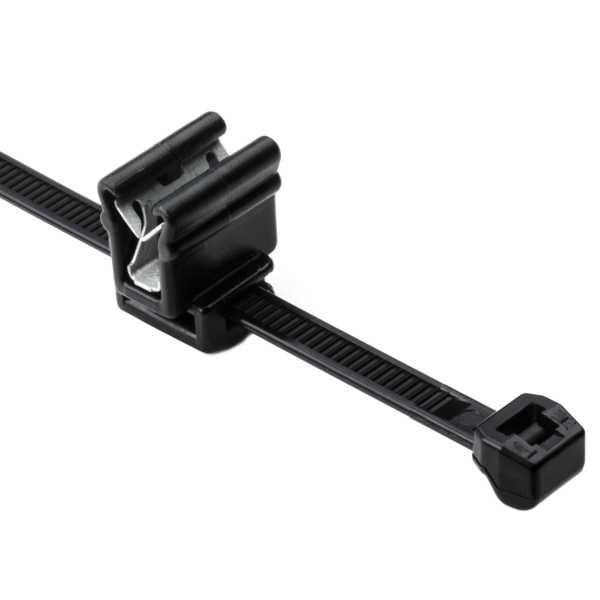

T50ROSEC4A, EC4A, 7.9" Edge Clip, Outside Serrated

Zoom Out
Zoom In

HellermannTyton
T50ROSEC4A, EC4A, 7.9" Edge Clip, Outside Serrated, 50lb, Parallel Top Mount, .039"-.117" Panel Thickness

Availability: In Stock

$34.07
(50 Pack)
7.9" 50lb tensile strength UV stabilized tie and edge clip. Designed for bundling and securing cables to the edge of a plastic or sheet metal where holes are not available.
Stock № 44-5750
HellermannTyton

Full Specifications

Brand HellermannTyton
Part № 156-00860
U/M 50 Pack
Type Two Piece Edge Clips
Color Black
Length 7.9"
Min. Tensile Strength 50lbs
Max. Bundle Diameter 1.8"
Fixing Top
Cable Tie Variant Outside Serrated
Cable Bundle Orientation Parallel To The Edge
Cable Tie Material Polyamide 6.6 heat stabilized (PA66HS)
Cable Tie Operating Temperature -40 °F to +221 °F (-40 °C TO +105 °C) continuous
Cable Tie Flammability UL94 V2
Edge Clip Panel Thickness .039" - .117" (1-3mm)
Edge Clip Material Polyamide 6.6 Impact modified, heat stabilized, UV resistant (PA66HIRHS)
Edge Clip Flammability UL94 HB
Edge Clip Operating Temperature -40 °F to +230 °F (-40 °C TO +110 °C) continuous
