Deutsch

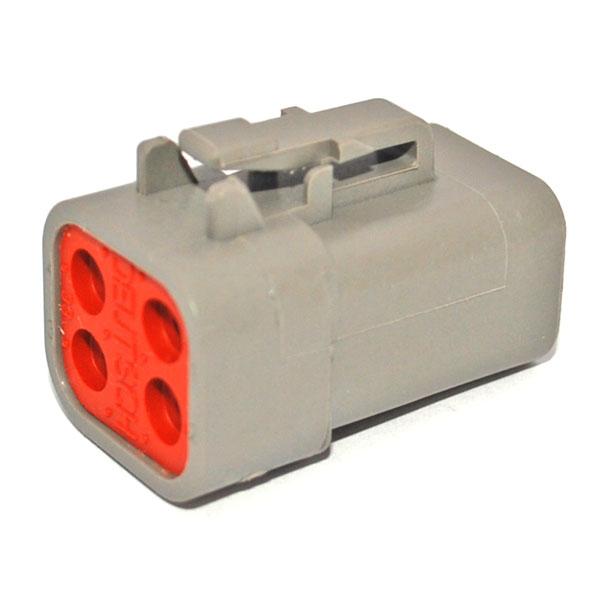

DTP06-4S, Plug,
4 Pin, Gray
Limited Availability
$7.56
(Each)
The DTP connector line was developed to fill the need for higher amperage, multi-pin, inexpensive connectors with the same specification as the DTM and DT within a single shell. Overall design offers protected interfacial seal located within the receptacle shell.
Stock №
51-2277
Goes With
Description
Submersion:Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.
Full Specifications
| Group | Plugs |
| Brand | Deutsch |
| Part № | DTP06-4S |
| U/M | Each |
| Wedgelock Requirement | WP-4S (sold separately) |
| Wire Range | 14-10 AWG |
| Cable Insulation Range | .134" - .170" |
| Holds | Socket |
| Cavities | 4 |
| Color | Gray |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Rectangular |
| Max Current Range | 25 Amps |
| Mount | In-line |
