Deutsch

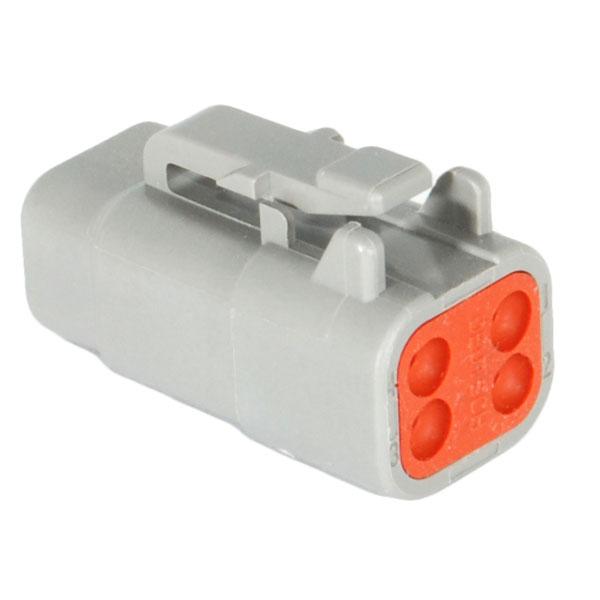

DTM06-4S Plug,
4 Pin, Gray
Limited Availability
$1.90
(Each)
Deutsch DTM Series of transportation connectors are used in harsh environmental applications where reliable signal circuits are critical to operating performance. Typical applications include on or around engine, transmission and under hood, anywhere data signals or critical electronic circuits go, DTM Series will provide reliable peak connector performance.
Stock №
51-0665
Goes With
Description
Submersion:Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.
Full Specifications
| Group | Plugs |
| Brand | Deutsch |
| Part № | DTM06-4S |
| U/M | Each |
| Wedgelock Requirement | WM-4S (sold separately) |
| Wire Range | 22-16 AWG |
| Cable Insulation Range | .053" - .120" |
| Holds | Socket |
| Cavities | 4 |
| Color | Gray |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Rectangular |
| Max Current Range | 7.5 Amps |
| Mount | In-line |
