Deutsch

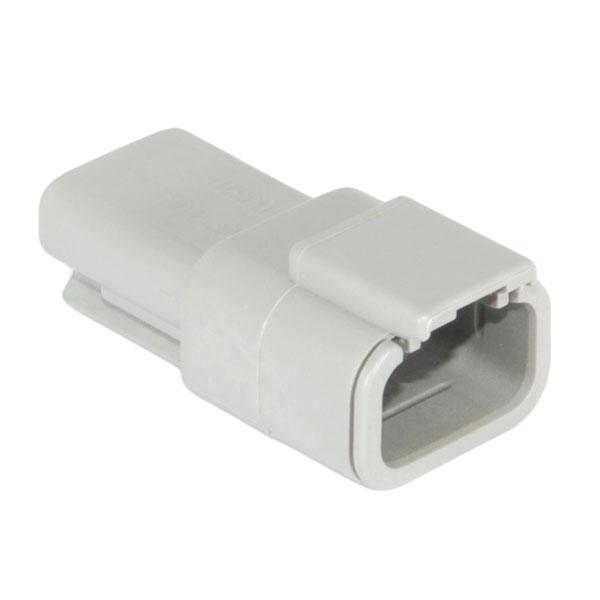

DTM04-3P Receptacle,
3 Pin, Gray
Limited Availability
$2.16
(Each)
Stock №
51-0431

Goes With
Description
Submersion:Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.
Full Specifications
Group | Receptacles |
Brand | Deutsch |
Part № | DTM04-3P |
U/M | Each |
Wedgelock Requirement | WM-3P (sold separately) |
Wire Range | 22-16 AWG |
Cable Insulation Range | .053" - .120" |
Holds | Pin |
Cavities | 3 |
Color | Gray |
Material | Plastic |
Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
Max Current Range | 7.5 Amps |
Mount | In-line |
